Messier 57 - The Ring Nebula

Date: July 20, 2020

Cosgrove’s Cosmos Catalog #0038

Messier 57 - The Ring Nebula (click to enlarge)

Table of Contents Show (Click on lines to navigate)

    About the Target

    Messier 57, also known as NGC 6720, and the “Ring Nebula” is located about 2400 light-years away in the constellation Lyra. M57 is a planetary nebula - an expanding shell of gas and dust expelled by its star in the last stages of its life. The outer shell is expanding at a rate of ~one arcsecond per century. The blue-green color of the central area is due to doubly ionized oxygen.

    Annotated Image

    Annotated image of M57 was created with Pixinsight’s Imagesolver and AnotateImage scripts.

    Location in the Sky

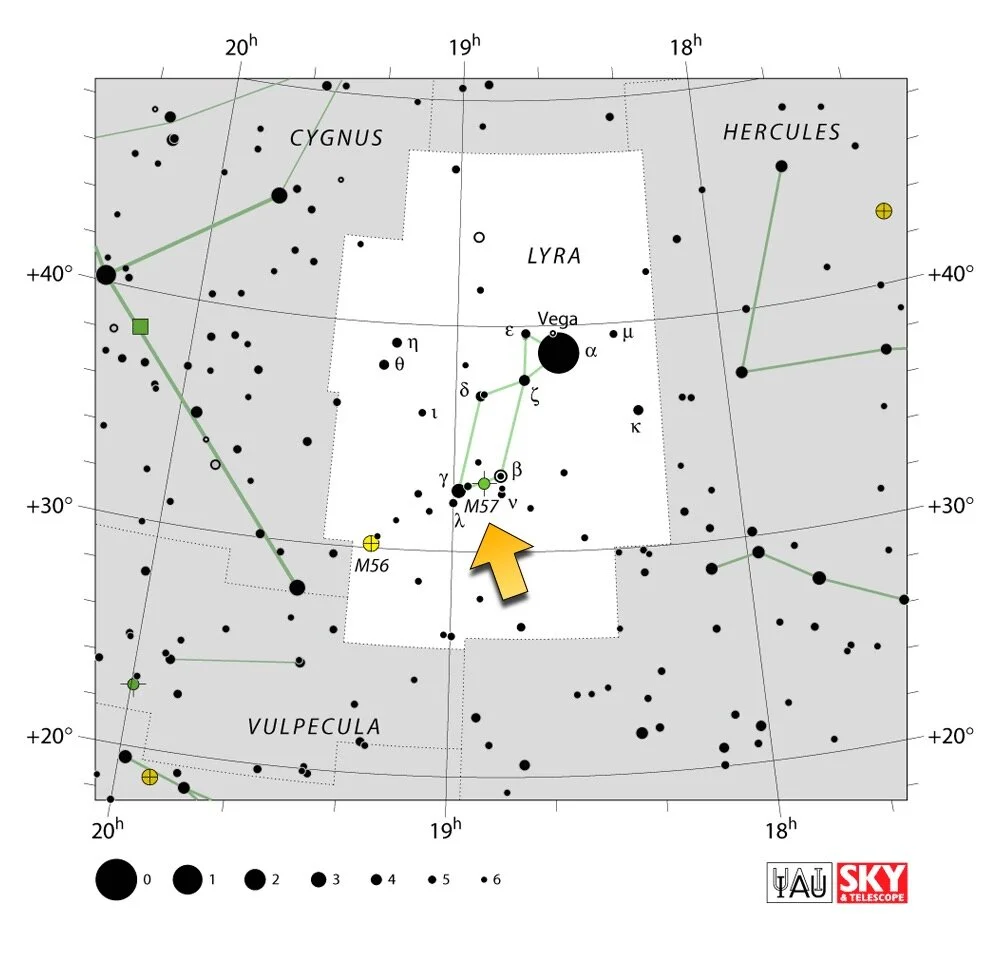

    IAU/Sky & Telescope Constellation Chart of Lyra with the location of the M57 indicated by a yellow arrow.

    IAU/Sky & Telescope Constellation Chart of Lyra with the location of the M57 indicated by a yellow arrow.

    About the Project

    This is not the first time I have tried to image this famous object. I tried it last year (2019) when I got my first telescope platform up and running.

    My first attempt at M57 from 2019 (Click to zoom)


    This is a tough object for my scope and it is very small. It measures about 1.0 x 1.5 arcseconds. This is small for my current scope - to put it mildly. But I was happy that I pulled more detail out of it this year. I can see the red-orange of the outer band and some structure in this part of the ring. I can clearly see the central star and the modulated dust and blue-green color of the central area.
    But still so far from perfect - always more to learn!

    Commentary from 7-29-21 when adding this project to the website

    The amount of detail shown from this attempt compared to the first attempt is pretty significant and I am pretty happy about that. The processing necessary to bring this out was done well. The biggest problem this image has is how the noise reduction was done (very heavy-handed) and the fact that the background is a bit mottled. This is a common problem in the early images and a challenge that I am finally getting under control this year.


    More Info

    Wikipedia: Messier 57

    NASA: Hubble Image of Messier 57

    The Live Sky: Messier 57


    Capture Details

    Lights

    • 95 x 120 seconds

    • The total integration time is 3.1 hours

    Cal Frames

    • not recorded.


    Capture Hardware

    • Scope: William Optics 132mm FLT F/7 APO

    • Guide Scope: Apterna 60mm

    • Camera: ZWO ASI294MC-Pro

    • Guide Camera: ZWO ASI290Mini

    • Camera Rotator: Pegasus Astro Falcon

    • Focus Motor: Pegasus Astro Focus Cube 2

    • Mount: Ioptron CEM60Polar Alignment: Ioptron Ipolar integrated alignment cameras


    Software

    • Capture Software: Control: PHD2 Guider, Sequence Generator Pro controller

    • Image Processing: Deepsky Stacker, Pixinsight, Photoshop, Coffee, extensive processing indecision and second guessing, and much swearing…..

    Click below to see the Telescope Platform version used for this image

    Patrick A. Cosgrove

    A retired technology geek leveraging his background and skills in Imaging Systems and Computers to pursue the challenging realm of Astrophotography. This has been a fascinating journey where Art and Technology confront the beauty and scale of a universe that boggles the mind…. It’s all about capturing ancient light - those whispering photons that have traveled long and far….
