Messier 20 - The Trifid Nebula - Mono Camera FIrst Light!

Date: July 17, 2020

Cosgrove’s Cosmos Catalog #0042

Messier 20 - The Trifid Nebula that was created in LRGB. (click to enlarge)

Table of Contents Show (Click on lines to navigate)

    About the Target

    Messier 20 is known by the common name “The Trifid Nebula” and by NGC 6514. It is a star-forming region in the constellation of Sagittarius and is located about 4100 light-years away. Here is what Wikipedia has to say:

    It was discovered by Charles Messier on June 5, 1764. Its name means 'three-lobe'. The object is an unusual combination of an open cluster of stars, an emission nebula (a relatively dense, red-yellow portion), a reflection nebula (the mainly NNE blue portion), and a dark nebula (the apparent 'gaps' in the former that cause the trifurcated appearance also designated Barnard 85). Viewed through a small telescope, the Trifid Nebula is a bright and peculiar object and is thus a perennial favorite of amateur astronomers.

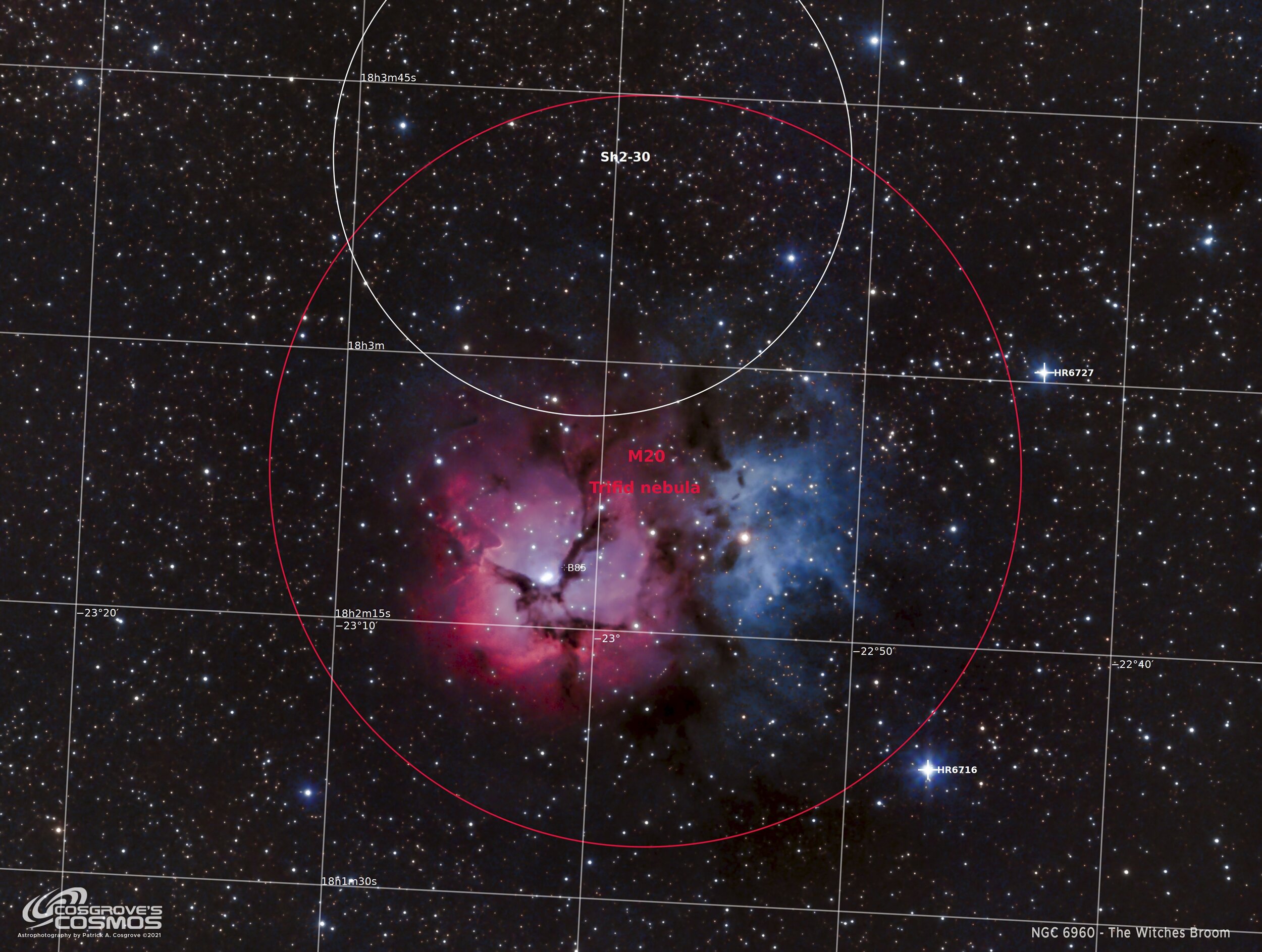

    The Annotated Image

    The annotated version of this image was created using Pixinsight’s Imagesolver and AnnotateImage scripts.

    About the Project

    M20 - The Triffid Nebula. I actually shared a shot of this object earlier this year, taken with my OSC (One-Shot-Color) camera and my main scope.

    This is a first for me! After more than a year since I got the Astro-Physics telescope, it is finally ready to make images! It will also be my first time using a cooled mono camera and LRGB filters mounted on a wheel.

    This scope has a longer focal length, so the scale of the image is larger than in my previous shot.

    This one was taken on the 7-17-20, the same night as my Elephant's Trunk Nebula.

    It is the result of 10 x120 second luminance images, and 8x120 second images for RGB filters. I had some difficulty processing this image but I have now sorted that out and this is my resulting output.

    A mono camera is a lot more work. For example, files for this project top out at 12GB once you count all of the Dark, flats, and bias calibration files. But with a relatively small number of subs, you can get a great signal-to-noise ratio. One-shot-color cameras typically use an RGGB Bayer filter pattern. So every 2x2 block of pixels has 1 red, 1 blue, and 2 green pixels. On a mono camera, all 4 pixels are used for one color. So when you think about it, a one-shot-color camera has 25% of its pixels measuring R and B each, and 50% of its pixels measuring G. BUT - with the possible exception of a few planetary nebulae, there are almost NO green-colored objects on the night sky. So half your signal is kind of wasted. A mono camera is much more efficient. On the other hand - it's also kind of a pain in the butt and a lot more work. You really can't beat the convenience of an OSC! But with relatively few frames, this is a pretty respectable image if I do say so myself!

    Location in the Sky

    FreeStarChart.com Constellation Chart for Sagittarius, showing M20’s location indicated by a yellow arrow.

    More Information

    Wikipedia: Messier 20

    NASA: Hubble Telescope image of M20

    The Live SKy: Messier 20


    Capture Details

    Light Frames

    • 10 x 120 seconds L

    • 8 x 120 seconds R

    • 8 x 120 seconds G

    • 8 x 120 seconds B

    • Total of 1.33 hours

    • 7-28-21 note: I was so new at this at the time, I never recorded little details like camera binning or cooldown temps!

    Cal Frames

    • not recorded


    Capture Hardware

    • Scope: Astrophysics 130mm Starfire F/8.35 APO refractor

    • Guide Scope: Televue 76mm Doublet

    • Camera: ZWO ASI1600mm-pro with ZWO Filter wheel with ZWO LRGB filter set, and ZWO GeII 7nm Narrowband filter set

    • Guide Camera: ZWO ASI290Mini

    • Focus Motor: Pegasus Astro Focus Cube 2

    • Mount: Ioptron CEM60

    • Polar Alignment: Polemaster camera

    Software

    • Capture Software: PHD2 Guider, Sequence Generator Pro controller

    • Image Processing: Pixinsight, Photoshop - assisted by Coffee, extensive processing indecision and second-guessing, editor regret and much swearing…..

    Click below to see the Telescope Platform version used for this image

    Patrick A. Cosgrove

    A retired technology geek leveraging his background and skills in Imaging Systems and Computers to pursue the challenging realm of Astrophotography. This has been a fascinating journey where Art and Technology confront the beauty and scale of a universe that boggles the mind…. It’s all about capturing ancient light - those whispering photons that have traveled long and far….
